Description:-

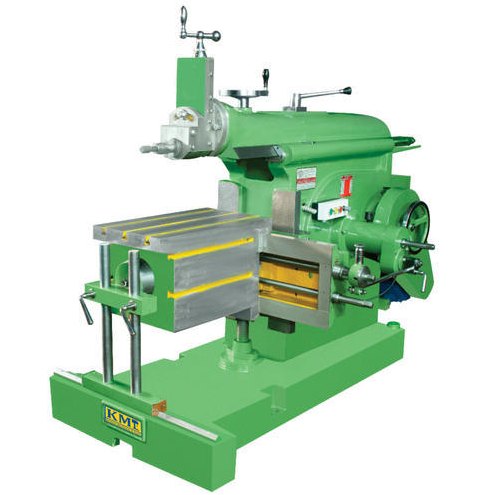

Shaping machine is a machine designed to give desired shapes to surfaces that may be horizontal, vertical or flat. A shaping tool is used to cut in curves, different angles, and many other shapes. A disc is responsible for the tool rotation which results in the forward and backward movement. The cutting tool is used to give shape to the hard surface of metal or wood by removing the excess material.
| Model | 12" Stroke | 18" Stroke | 24" Stroke | 30" Stroke |
| Length of Stroke | 305 | 457 MM | 610 MM | 762 MM |
| Length of Ram without tool slide | 660 | 1016 | 1270 | 1524 |
| Ram bearing in column | 660 | 711 | 856 | 966 |
| Ram bearing Width | 180 | 241 | 290 | 330 |
| Tool Slide Traverse | 100 | 102 | 152 | 177 |
| Horizontal Traverse of Table | 420 | 457 | 556 | 660 |
| Vertical Traverse of Table | 230 | 330 | 370 | 430 |
| Top clamping surface of Table | 305x205 | 279x432 | 350x580 | 368x640 |
| Length of main slide | 584 | 700 | 887 | 1016 |
| Width of main slide | 250 | 280 | 316 | 330 |
| No. of Speeds | 4 | 4 | 4 | 4 |
| Range of Speeds | 16-80-40-65 | 16-80-40-65 | 12-20-36-58 | 8-16-30-48 |
| Motor required for Cone Pully Drive | 2 H.P. | 2 H.P. | 3 H.P. 1440 RPM | 5 H.P. |
| Motor required for All Geared Drive | 2 H.P. | 2 H.P. | 3 H.P. 960 RPM | 5 H.P. |
