Description:-

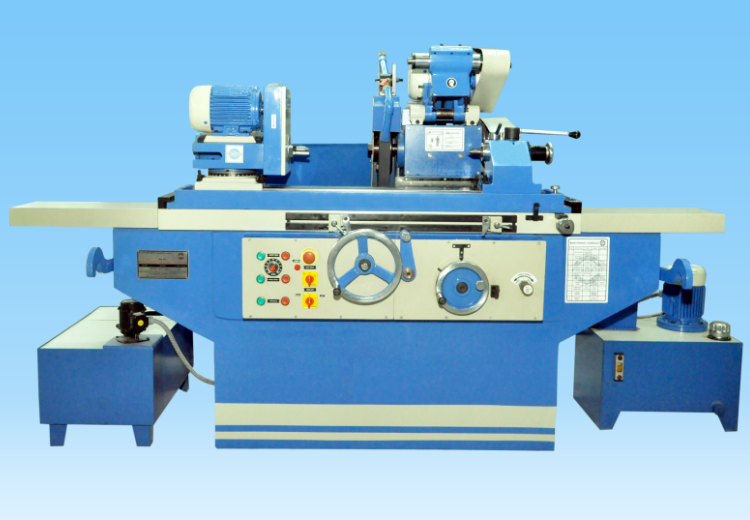

The cylindrical grinder is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation.
Cylindrical grinding is defined as having four essential actions:
| No. | Specification | Range/Value | |
| 1 | Type | MM | Hydraulic |
| 2 | Center Height | MM | 150 |
| 3 | External Grinding | ||
| 4 | Max. Grinding Diameter (OD) | MM | 150 |
| 5 | Max. Grinding Length | MM | 600 |
| 6 | Max. Distance Between Centers | MM | 600 |
| 7 | Max. Grinding Diameter (Internal Grinding) | MM | 15-100 |
| 8 | Max. Grinding Depth (Internal Grinding) | MM | 75-100 |
| 9 | Total Swivel | Degree | ± (10) |
| 10 | Work Head and Tall Stock | ||
| 11 | Speed of word head spindle | RPM | 50-750 |
| 12 | Morse taper in work head | MT 3 | |
| 13 | Swivel of work head | ± (50) | |
| 14 | Morse taper in tall stock | MT 3 | |
| 15 | Wheel Head and Wheel Speed | ||
| 16 | Grinding Wheel diameter | MM | 300 |
| 17 | Grinding Wheel width | MM | 40 |
| 18 | Grinding Wheel bore | MM | 76 |
| 19 | Grinding Wheel head | Degree | ± (45) |
| 20 | Automatic in-feed | MM | 0-0.0125 - 0.0125 |
| 21 | Plunge Feed & Travel | MM | 0-0.050 & 0.3 - 0.5 |
| 22 | Speed of the Grinding Wheel | RPM | 2000 |
| 23 | Internal Grinding Attachment | ||
| 24 | Grinding Spindle Diameter | MM | 60 |
| 25 | Quill Diameter | MM | 25 |
| 26 | Min. & Max. dia. of hole grinding | MM | 10-100 |
| 27 | Spindle speed | RPM | 14000 |
| 28 | Electrical Motors | ||
| 29 | Wheel head motor | HP | 2 HP |
| 30 | Work head motor | HP | |
| 31 | Hydraulic pump motor | HP | |
| 32 | Coolant pump motor | HP | |
| 33 | Internal Grinding Attachment motor | HP | |
| 34 | Accessories to be quoted and supplied along with machine/equipment :1. Poly V-belt, coolant tank with piping, Grinding wheel with one flange, 2. dead centres, True ChuckFlange, Two Point Steady Rest & Three Point Steady Rest for Dia. 10 mm to 80 mm, set of Oil seals.2 Three Jaw chuck (ø 150mm)3. Four Jaw Chuck (ø 150mm)4. Dogs & Carriers (5 - 30 mm)5. Internal grinding Attachment with quill of diffetnet diameters.6. Machine Lamp7. Diamond Tool with holder8. Coolant splash guard9. Wheel balancing stand10. Wheel Puller with extracting nut11. Wheel guard12. One set of manuals13. One set of Service Tools, Keys,allen keys, Spanner14. Grinding wheel (Al2O3 ) / SiC - 02 Nos. suitable for External Grinding & Internal Grindingmentioned in Sl.NO 03 & 07 9.15 Anti vibration Pads | ||
