Description:-
A bag sealing cutting machine is used to seal bags such as plastic bags, paper bags or carton bags, etc. This machine can be used for bags that are made of different materials like polyethylene, polypropylene, PVC, PET, PP, PE, PS, nylon, cotton, leather, wood, metal, glass, etc. The main function of this machine is to cut off the excess bag material after sealing the bag. There are many types of bag sealing machines available in the market but the most common ones are manual and automatic.
Single Decker type Bag Cutting & Sealing Machine
| Models | SSN - 600 | SSN - 700 | SSN - 800 |
| Width of Machine | 600 mm | 700 mm | 800 mm |
| Maximum cut width | 575 mm | 675 mm | 775 mm |
| Maximum cut Length | 600 mm | 600 mm | 600 mm |
| Maximum Stroke | 200/min. | 200/min. | 200/min. |
| Max. Roll Diameter at Rill Stand | 700 mm | 700 mm | 700 mm |
| Total Connected Load | 4 kw | 4.5 kw | 5 kw |
| Overall Diameter (Exact out side machine size) | W - 1050 mmL - 4200 mmH - 1100 mm | W - 1150 mmL - 4200 mmH - 1100 mm | W - 1250 mmL - 4200 mmH - 1100 mm |

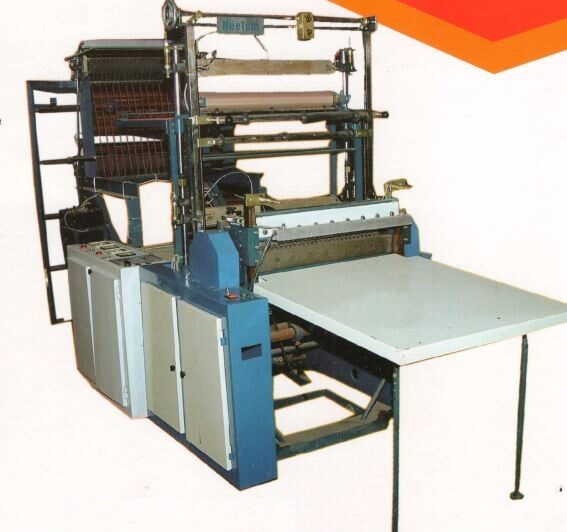

Double Decker type Bag Cutting & Sealing Machine
| Specification | DS-20" | Auto Conveyor-20" | DS-24" | Auto Conveyor-24" | DS-28" | Auto Conveyor-28" | DS-32" | DS-36" |
| Sealing & Cutting width | 450 MM | 450 MM | 550 MM | 550 MM | 650 MM | 650 MM | 750 MM | 850 MM |
| Cut Lengths | 1000 MM | 1000 MM | 1000 MM | 1000 MM | 1000 MM | 1000 MM | 1000 MM | 1000 MM |
| Working Cycles St./Min. | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-80 | 20-80 |
| Main Drive AC | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP |
| Sealer Heating | W - 1200X2 | W - 1200X2 | W - 1200X2 | W - 1200X2 | W - 1200X2 | W - 600X2 | W - 600X2 | W - 600X2 |
| Length of Machine | 3500 MM | 4000 MM | 3500 MM | 4000 MM | 3500 MM | 4000 MM | 3200 MM | 3600 MM |
| Width of Machine | 1250 MM | 1250 MM | 1350 MM | 1350 MM | 1500 MM | 1500 MM | 1400 MM | 1500 MM |
| Height of Machine | 1800 MM | 1800 MM | 1800 MM | 1800 MM | 1800 MM | 1800 MM | 1800 MM | 1800 MM |
